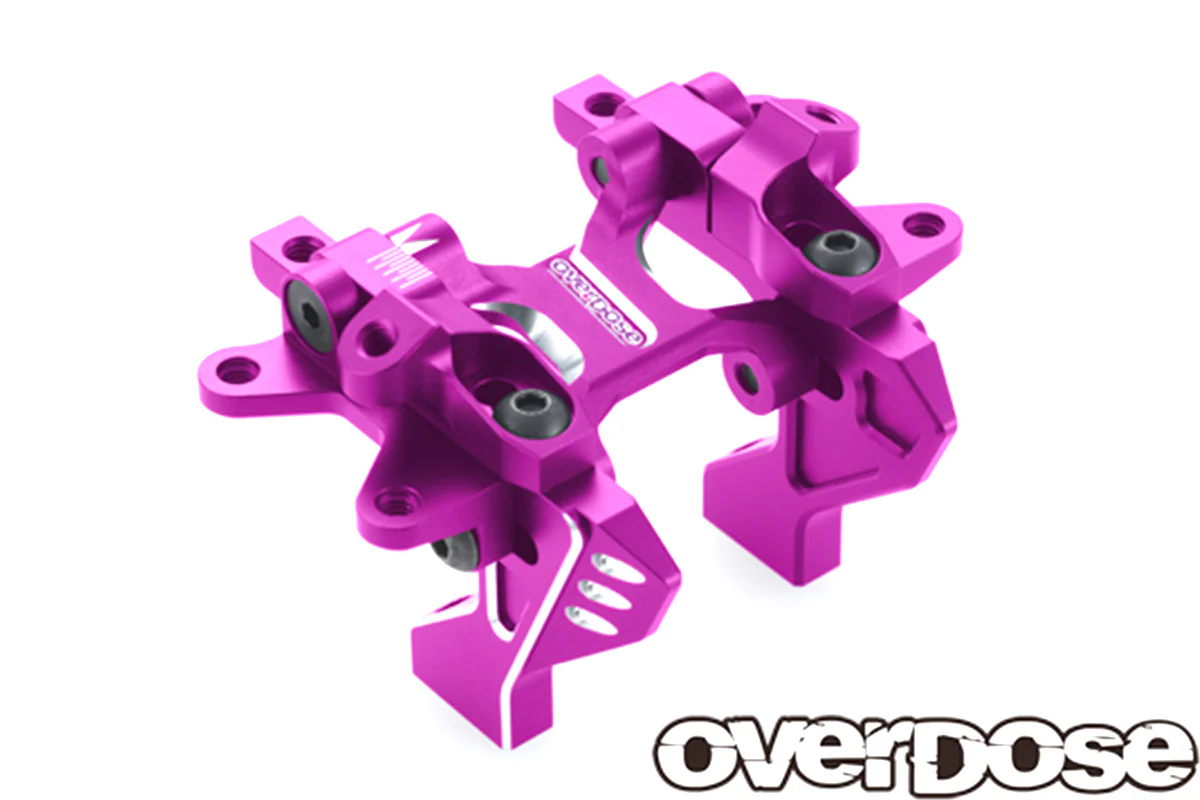

Overdose Alum. Front Bulkhead Type-3 - Purple
Overdose (#OD3438) Alum. Front Bulkhead Type-3 - Purple
Feature:
- For: Overdose GALM series
- Introduce Aluminum Front Bulkhead Type-3. In this Type-3, it is possible to adjust the caster angle, upper arm mounting width, and rocker arm mounting position. 4mm width the caster angle adjustment which is able to adjust caster angle from 12° to 4° on standard GALM chassis. Set the mounting width with a spacer by the separate upper arm mount design.
- With this Type-3, the rocker arm mount has separate design and move two steps forward at 2mm pitch from the standard mounting position, so this is avoid the push rod and upper arm interfered when setting to reduce the caster angle.
- Reduced weight about 45% compared to previous Type-2 aluminum bulkhead, also only increase about 6g from standard bulkhead parts.
- You can experience various settings and increased rigidity without the weight increase. Available in 3 colors: purple, red, and black.
Specification:
- Material: Aluminum
- Colour: Purple
- Weight: 24g
What is included:
- Overdose (#OD3438) Alum. Front Bulkhead Type-3 - Purple (1 set)
