• For: 1:10 On-Road cars
• Camber & Toe measurements: For real-time adjustment of RC touring cars.
• High measurement accuracy: ±0.2° precision within a ±17.5° range.
• Speed & responsiveness: Instant updates via app, ideal for on-the-fly tuning.
• Bluetooth 5.0: Ensures fast, stable connection with mobile devices.
• App support (“RC Gears”): Displays, logs, and stores angular data on iOS and Android.
• CNC-machined aluminum housing: Durable, dust-resistant, and impact-safe.
• Compact and portable: Smaller than half an iPhone 13, easy to carry track‑side.
• Built‑in rechargeable Li‑Po battery (~200 mAh) with USB‑C charging.
• Low‑voltage protection: Alerts when battery drops below ~3.4V.

• Input Voltage: 5V
• Input Current: 200-300mA
• Interface: Type C
• Battery Type: 3.7V LiPo
• Battery Capacity: 200mAh
• Working Voltage: 3.4-4.2V
• Working Current: ＜10mA
• Low-voltage Protection: ＜3.4V (Flashes Red)
• Measuring Range: ±17.5°
• Measuring Accuracy: ±0.2°
• Working Temperature: 0℃-50℃
• Working Humidity: 5%-90% (None-condensation)
• Storage Temperature: -10℃-50℃
• Storage Humidity: 1%-75% (None-condensation)

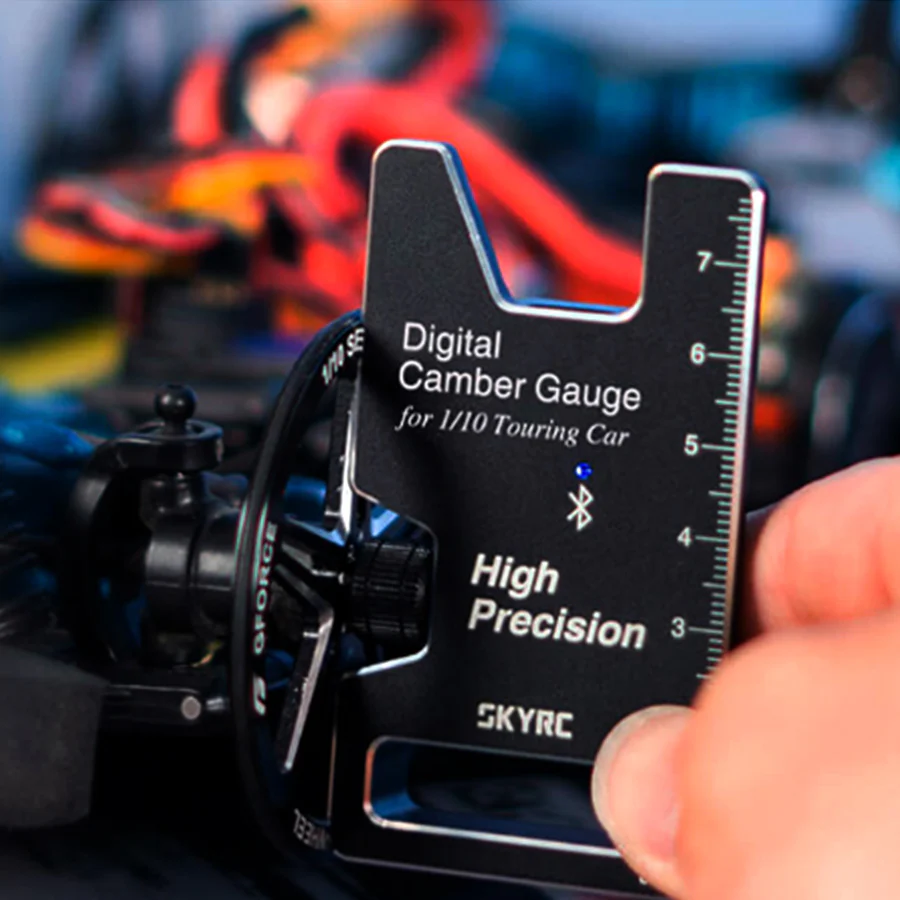

• SkyRC (#SK-500042-01) CTG-015 Digital Camber Gauge (1 set)

Note: Mobile device is not included.
